Nobel Biocare introduces a ‘complete posterior solution’

Large extraction sockets, limited accessibility, tough-to-remove excess cement and high occlusal forces. These are just some of the challenges a clinician faces when restoring a single tooth in the posterior. And, with molar replacement being among the most common indications, these challenges are encountered repeatedly.

A solution that addresses all these problems in an efficient and predictable way will make life easier for dental professionals and patients. That’s precisely why Nobel Biocare is bringing innovation back to the posterior region with its new complete posterior solution — an original combination of new wide-platform implants and restorative options, all specially designed for molar sites.

An implant like no other

Multiple Nobel Biocare innovations combine to make this solution complete, but the foundation for treatment success is the implant itself. Here Nobel Biocare offers several options, each engineered for the specific demands of the posterior. All are intended to shorten time for the patient by enabling immediate loading whenever possible.

One option is NobelActive. Many clinicians are already familiar with this award-winning* implant. Its distinctive design and the surgical protocol form a unique combination that can enable immediate function in cases where it might otherwise not be achieveable.[1-3]

To condense bone gradually, its tapered body features threads that narrow towards the apex, while the apex itself features drilling blades to preserve bone by allowing a smaller osteotomy. These features are all designed for high primary stability, even in soft bone and extraction sockets.

Now, a new variant offers the benefits of the NobelActive family but with dimensions ideal for the molar region. NobelActive wide platform (WP) possesses a wider diameter implant body (5.5 mm) to better fit the large extraction sites in the molar region and a wider implant platform for an optimal emergence profile. NobelActive WP also comes in an option with a shorter body (7 mm) to avoid critical anatomical structures, such as nerves.

Stability and flexibility in parallel

Alternatively, clinicians can opt for NobelParallel Conical Connection (CC). Combining a parallel-walled implant body that is well documented with an advanced internal connection, NobelParallel CC offers extraordinary flexibility. It is engineered for use in all bone qualities and for a wide range of indications. The 5.5 mm wide platform option is designed for an optimized emergence profile for large molar sites.

Both experienced clinicians and those early in their implant careers will appreciate NobelParallel CC’s straightforward surgical protocol. It offers flexibility and shortens treatment time, benefitting the patient too. Together, the surgical protocol and implant design form a unique combination that’s intended to allow immediate function in more cases by providing high primary stability. The thread design and tapered apex of NobelParallel CC are designed for underpreparation of the surgical site and bicortical anchorage — techniques that support immediate loading.[4,5]

High stability during the initial healing phase is then maintained by Nobel Biocare’s unique TiUnite surface.[6] In addition, patented grooves enhance osseointegration7 for a predictable end result.

Connecting strength and flexibility

Both new implants benefit from Nobel Biocare’s internal conical connection. This advanced connection’s conical seal and hexagonal interlocking mechanism provide high mechanical strength.8 It offers restorative flexibility too, being compatible with Nobel Biocare’s most innovative restorative solutions, including those designed specifically for the posterior.

These include the new PEEK Healing and PEEK Temporary Abutments, which are anatomically shaped to match the molar contours. As the PEEK Abutments come ready-shaped for an optimized emergence profile, fewer adjustments are needed. This can simplify treatment and reduce costly chair time.

The crown that ‘rules them all’

When it comes to the final restoration, the FCZ (full-contour zirconia) Implant Crown is designed for strength and predictability even under the high occlusal forces of the posterior. There’s no worrying about chipping either, as the full-contour nature of the NobelProcera FCZ Implant Crown removes the need for veneering.

The biocompatibility of the materials used contributes to biological stability in the areas where it matters. Plus, being screw retained, the FCZ Implant Crown is completely cement free, avoiding the risks associated with cement excess entirely. Even the titanium adapter is mechanically retained.

The ability to use an angulated screw channel (ASC) allows the screw access hole on the FCZ Implant Crown to be placed anywhere between 0 and 25 degrees in a 360-degree radius. This means it can be angled towards the front of the mouth for easy access, even in the posterior. It also helps avoid placing the access channel on the cusp of a tooth, where it could affect occlusion. The associated Omnigrip Screwdriver further simplifies work on the restoration. Its effective pick-up function and secure grip on the screw help the clinician to work safely and efficiently.

Natural-looking tooth color is another benefit offered by the FCZ Implant Crown. Whichever of the eight available shades is used, the color is applied throughout the material. This means discoloration isn’t a concern when making adjustments. Cutbacks and staining can also be used to achieve the desired esthetic effect.

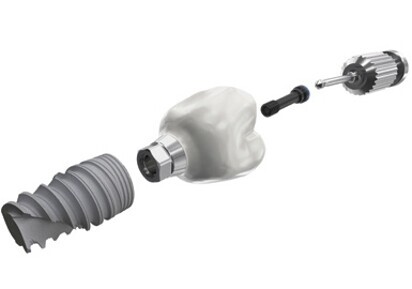

Several components, one complete solution

While each product within Nobel Biocare’s complete posterior solution stands out on its own, they stand stronger together. Like all Nobel Biocare innovations, they are tested together as one system, as they exist in the patient’s mouth.

Combining Nobel Biocare components means all elements are designed to work in synergy for the optimal treatment outcome. Restoring single molars represents a clinical challenge for many reasons, but now, by uniting new and proven innovations, Nobel Biocare has the answer.

Find out more at nobelbiocare.com/bringinginnovationback.

References
1. Kolinski ML, Cherry JE, McAllister BS, Parrish KD, Pumphrey DW, Schroering RL. Evaluation of a variable-thread tapered implant in extraction sites with immediate temporization: A 3-year multi-center clinical study. J Periodontol. 2014 M.
2. Arnhart C, Kielbassa AM, Martinez-de Fuentes R, Goldstein M, Jackowski J, Lorenzoni M, Maiorana C, Mericske- Stern R, Pozzi A, Rompen E, Sanz M, Strub JR. Comparison of variable-thread tapered implant designs to a standard tapered implant design after immediate loading. A 3-year multicenter randomized controlled trial. Eur J Oral Implantol. 2012 5:123-36.
3. Babbush CA, Brokloff J. A Single-Center Retrospective Analysis of 1001 Consecutively Placed NobelActive Implants. Implant Dent. 2012:21(1):28-35.
4. Tallarico M, Vaccarella A, Marzi GC, Alviani A, Campana V. A prospective case-control clinical trial comparing 1- and 2-stage nobel biocare tiunite implants: resonance frequency analysis assessed by osstell mentor during integration. Quintessence Int. 2011;42(8):635-44.
5. Agliardi EL, Pozzi A, Stappert CF, Benzi R, Romeo D, Gherlone E. Immediate Fixed Rehabilitation of the Edentulous Maxilla: A Prospective Clinical and Radiological Study after 3 Years of Loading. Clin Implant Dent Relat Res. epubahead 2012.
6. Glauser R, Portmann M, Ruhstaller P, Lundgren AK, Hammerle CH, and Gottlow J. Stability measurements of immediately loaded machined and oxidized implants in the posterior maxilla. A comparative clinical study using resonance frequency analysis. Appl Osseointegration Res 2001, 2:27-29.
7. Hall J, Miranda-Burgos P, Sennerby L. Stimulation of directed bone growth at oxidized implants by macroscopic grooves: an in vivo study. Clin Implant Dent Relat Res 2005;7 (Suppl 1):76-828

*Data on file.
